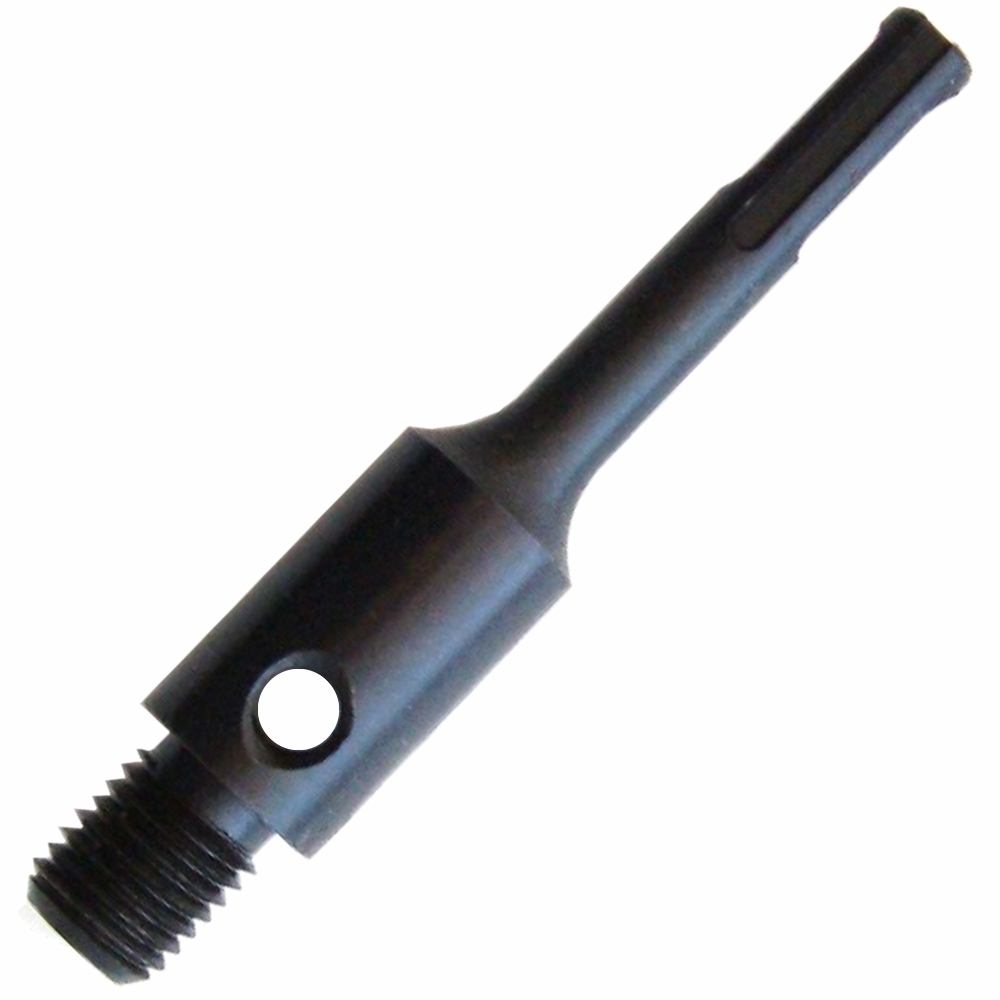

ADAPTOR SDS PLUS M16X70MM FOR 18 DIAM. CORE BITS

Description

Adaptor length: 70mm

Thread: M16

Connection type: SDS Plus

Application:

This is a SDS Plus adaptor to connect the Dry Cut Diamond Core Drill to your rotary hammer.

Make sure the threads are the same as the Dry Cut Diamond Core Drill – M22 or

M16.

Take note that there are 2 connection types:

• Hex
• SDS Plus

List of different adaptors:

1. Hex shank adaptors for the Dry Cut Diamond Core Drill range:

• Hex shank 70mm, M16 thread –

  TC18HEX1

• Hex shank 200mm, M16 thread –

  TC18HEX2

• Hex shank 300mm, M16 thread –

  TC18HEX3

• Drift key for removing the pilot drill –

  TC18KEY

• Pilot drill bit (not included with adaptors)-

  TC18PILOT

2. SDS Plus adaptors for the Dry Cut Diamond Core Drill range:

• SDS Plus 70mm, M16 thread –

  TC18SDS1

• SDS Plus 200mm, M16 thread –

  TC18SDS2

• SDS Plus 300mm, M16 thread –

  TC18SDS3

• SDS Plus 70mm, M22 thread –

  TC18SDS4

• SDS Plus 200mm, M22 thread –

  TC18SDS5

• SDS Plus 300mm, M22 thread –

  TC18SDS6

• Drift key for removing the pilot drill –

  TC18KEY

• Pilot drill bit (not included with adaptors)-

  TC18PILOT

NOTE:

The pilot drill bit is not included with the adaptors and it is available

separately –

TC18PILOT

INFORMATION:

Use the drift key

TC18KEY to remove or replace the

pilot drill bit from the adaptors.
